K-Type Double Rod End Tie Rod Cylinders | NFPA 4MAJ Series, Rod Lock Option - 6" and 8" Bore Sizes | Parker

To determine dimensions for a double rod end cylinder, first refer to the desired 4MA small bore single rod mounting style. After selecting the necessary dimensions, return to this page and supplement the single rod end dimensions with those shown in the table below. Please note that double rod end cylinders have a head dimension G at both ends, and that LG replaces LF, PK replaces P, etc. The double rod end dimensions differ from, or are in addition to, those for single rod cylinders. When a double rod end cylinder has two different rod ends, please clearly state which rod end is to be available at which head end.



K-type for 6" and 8" Bore

4MAJ Large Bore K-Type Cylinder

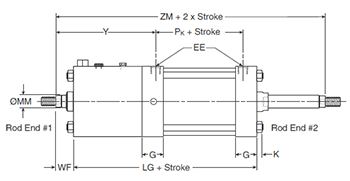

4MAJ Large Bore K-Type Cylinder Head Dimensions4MAJ Large Bore K-Type Cylinder Body Dimensions






Mounting Styles for Single Rod Models Corresponding Mounting Styles for Double Rod Models
C KC
CB KCB
D KD
DD KDD
F KF
J KJ
T KT
TB KTB
TD KTD





K-Type Dimensions

Bore Size
Rod # Rod Dia. MM EE (NPTF)
G K WF Y
LG (replaces LF)
PK (replaces P)
SAK (replaces SA)
XAK (replaces XA)
SSK (replaces SS)
SNK (replaces SN)
ZM   (Add 2X Stroke)
6 1 1-3/8 3/4 1.910 0.438 1.625 9.188 11.875 3.125 14.625 14.875 4.125 3.125 15.125
6 3 1-3/4 3/4 1.910 0.438 1.875 9.938 12.375 3.125 15.125 15.625 4.125 3.125 16.125
8 1 1-3/8 3/4 1.810 0.563 1.625 9.375 12.125 3.250 15.570 15.563 4.125 3.125 15.375
8 3 1-3/4 3/4 1.810 0.563 1.875 10.125 12.625 3.250 16.250 16.313 4.125 3.125 16.375

Other Mounting Styles:
