Parker 4202 | Normally Closed, Female, BSPP | Axial Valves

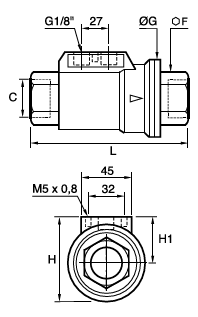

4202 Axial Valve BSPP Dimensions



Axial Valve - Normally Closed, Female, BSPP

Part #: 4202
Manufacturer: Parker






PART #

C

BSPP

DN

F

MM

G

IN

H

IN

H1

IN

L

IN

LB.

4202 10 17 20

G3/8

10

22 46 54 31 98 .814

4202 15 21 20

G1/2

15

27 52 60 35 112 1.085

4202 20 27 20

G3/4

20

33 64 70 38 135 1.634

4202 25 34 20

G1

25

41 69 76 41.5 143 2.024

4202 32 42 20

G1-1/4

32

50 86 91 48 165 3.301

4202 40 49 20

G1-1/2

40

60 96 102 54 180 4.180

4202 50 48 20

G2

50

75 109 115 60.5 207 6.360

Pilot port: 1/8 BSPP Complete with 1/8 BSPP silencer
