Prep-Air II Lubricators | Parker 15L Economy Series

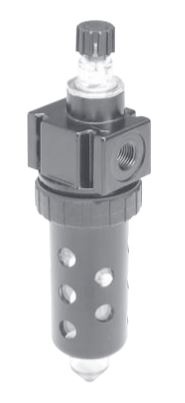

     Prep-Air-II-15L-Economy-Micro-Mist-Lubricator

    FEATURES

    • 1/4" or 3/8" ports
    • Proportional oil delivery over a wide range of air flows
    • Generates oil particles of 5 micron or smaller downstream to lubricate systems with complex piping arrangements
    • Precision needle valve assures repeatable oil delivery and provides simple adjustment
    • Transparent sight dome for 360° visibility
    • Removable drip control knob for tamper resistance

    SYMBOLS

    lubricator-symbol

    Back to Prep-Air II Main Page

    Part Numbers



    Part Number*  Description

    Port Size

    Flow
    (scfm)

    		Max. Bar (psig)

    Height (E)

    mm (in)

    Width (A)

    mm (in)

    Depth (B)

    mm (in)
    15L12N

    Poly bowl w/ metal guard, no drain

    		  1/4" 40 10.3 (150) 193 (7.61) 51 (2.00) 52 (2.06)
    15L14N

    Metal bowl w/ sight gauge, twist drain

    		 1/4" 40 17.2 (250) 193 (7.61) 51 (2.00) 52 (2.06)
    15L22N Poly bowl w/ metal guard, no drain 3/8" 40 10.3 (150) 193 (7.61)    51 (2.00)
    		 52 (2.06)
    15L24N Metal bowl w/ sight gauge, twist drain 3/8" 40 17.2 (250) 193 (7.61) 51 (2.00) 52 (2.06)

    * For fill plug option, replace "N" with "B". Place a "1" after the part number for BSPP ports. Place a "2" after the part number for BSPT ports.  See ordering information chart below for other bowl and fill options. Suggested lubricant: F442 oil - petroleum-based oil of 100 to 200 viscosity at 100°F. Do not use oils with additives, compounded oils containing solvents, graphite, detergents or synthetic oils.

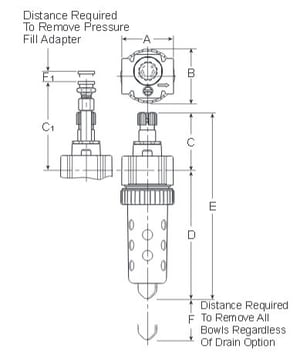

    Prep-Air-II-15L-Economy-Micro-Mist-Lubricator-Dimensions

    F= 45 mm (1.77 in)
    C1= 85 mm (3.35 in)

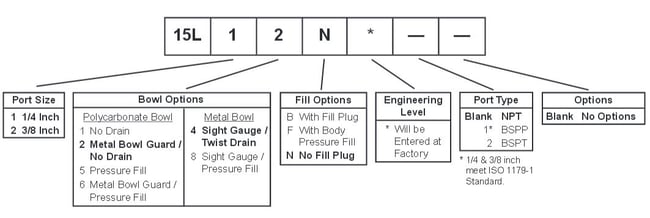

    Prep-Air-II-15L-Economy-Micro-Mist-Lubricator-Ordering

    FService Kits and Accessories

    Part Number Description
    PS905P Bowl guard kit
    PS946P Bowl kit - poly bowl, no drain
    PS929P Bowl kit - metal bowl, twist drain
    PS740P Sight dome kit
    PS914P
    		 Sight gauge kit
    PS797P
    		 Liquid level sensor kit
    PS916P Pressure fill adapter kit
    PS948P Service kit
    P04121 Adjustment knob
    PS943P Mounting bracket kit

    Technical Specifications

    Flow Capacity:

    1/4": 40 SCFM

    3/8": 40 SCFM
    Operating Temperature:

    32°F to 125°F - poly bowl

    32°F to 175°F - metal bowl
    Max. Supply Pressure: 17.2 bar (250 psig)
    Port Size: 1/4", 3/8" (NPT, BSPP, BSPT)
    Bowl Capacity: 2 oz
    Weight: 1 lb (0.45 kg)

    Warning Triangle WARNING: These products can expose you to chemicals including lead and/or DEHP and/or carbon black, which are known to the State of California to cause cancer or birth defects or other reproductive harm.  For more information go to www.P65Warnings.ca.gov
