Parker 5CNG Hose on Display at ACTEXPO 2015

Parker’s 5CNG Compressed Natural Gas Hose will be on display at ACTEXPO 2015 in Dallas, Texas, May 5-8, in Parker booth number 537.

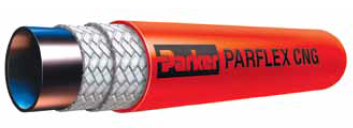

5CNG hose assemblies are produced by Parker's Parflex Division for use in gas dispensing systems, private and commercial refueling stations, on-vehicle fuel lines and residential CNG refueling. These assemblies are available only as Parker factory assemblies through Parker’s network of ParkerStores. The 5CNG hose assemblies are offered in a CSA certified single-line assembly and as a packaged twin-line solution with hoses bonded into a compact, safe, easy-to-install assembly. These hose assemblies can be up to 30% lighter than rigid tubing and can reduce part number complexity and installation time by providing assemblies that eliminate tangled hoses.
5CNG Hose Specifications
Part Number | Nominal ID | Maximum OD | Max. Working Pressure | Min. Bend Radius | Vacuum Rating | Weight | |||||
Inch | mm | inch | mm | psi | Mpa | inch | mm | inch | lbs/ft | kg/m | |
5CNG-3 | 3/16 | 5 | 0.43 | 11 | 5,000 | 34.5 | 1.5 | 38 | 28 | 0.05 | 0.07 |
5CNG-4 | 1/4 | 6 | 0.62 | 16 | 5,000 | 34.5 | 2.0 | 51 | 28 | 0.11 | 0.16 |
5CNG-6 | 3/8 | 10 | 0.65 | 16 | 5,000 | 34.5 | 3.0 | 76 | 28 | 0.09 | 0.13 |
5CNG-8 | 1/2 | 13 | 0.90 | 23 | 5,000 | 34.5 | 4.0 | 102 | 28 | 0.21 | 0.31 |
5CNG-12 | 3/4 | 19 | 1.15 | 29 | 5,000 | 34.5 | 7.5 | 191 | 28 | 0.24 | 0.36 |
5CNG-16 | 1 | 25 | 1.59 | 40 | 5,000 | 34.5 | 10.0 | 254 | 28 | 0.36 | 0.53 |
5CNG Hose Construction:
5CNG Hose Operating Parameters:
5CNG Hose Certifications:

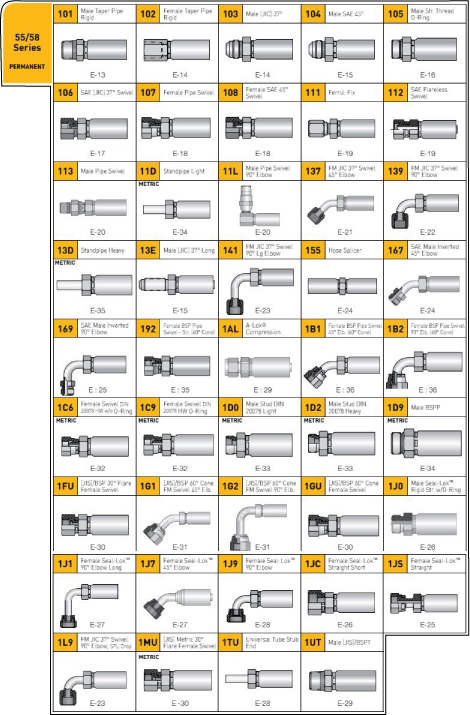

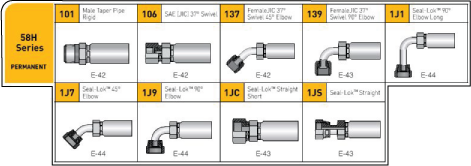

5CNG Hose End Availability:
